One Wire Braid-Textile Hose SAE 100 R5

Name: One Wire Braid-Textile Hose SAE 100 R5
Rating: 5 (99 reviews)

Inner tube: Thermoplastic Polyester
Reinforcement: Two high-tenacity polyester braids reinforcement
Cover: Oil and weather resistant synthetic
Temperature Range: -40º C~ 100º C

Get A Quote

PREV：Walang nakaraang artikulo
SUSUNOD：Spiral Protective Sleeve PP Plastic Hose Guard for Hydraulic Hose

Specification
Contact Us

Material:	Natural Rubber
Capability:	Rubber Oil Hose
Color:	Black
Standard:	DIN
Stock:	in Stock
Model Number:	R5

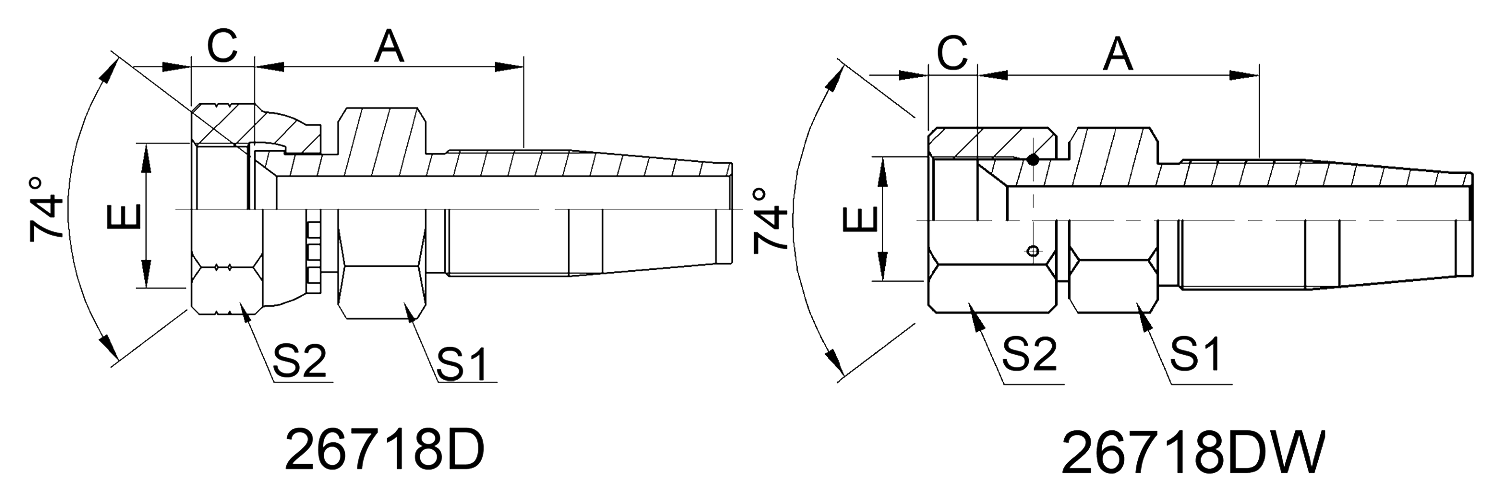

PART NO.	THREAD E	HOSE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S1	DIMENSIONS S2
PART NO.	THREAD E	HOSE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S1	DIMENSIONS S2
26718D-04-04	7/16"X20	04	22	9	14	15
26718D-05-05	1/2"X20	05	25.4	9.5	14	17
26718D-06-06	9/16"X18	06	24.5	10.5	17	19
26718D-08-08	3/4"X16	08	31.5	11	22	24
26718D-10-10	7/8"X14	10	35	13	27	27
26718D-12-12	1.1/16"X12	12	37	15	32	32
26718D-16-16	1.5/16"X12	16	33.5	16	38	41
26718D-20-20W	1.5/8"X12	20	41.5	17	41	50
26718D-24-24W	1.7/8"X12	24	43	20	46	55
26718D-32-32W	2.1/2"X12	32	45.5	23.5	65	75
Note: Suitable for SAE 100R5 hose

Model NO.	One Wire Braid-Textile Hose SAE 100 R5	Transport Package	Wooden box
Specification	1/8"-1/2"	Trademark	N/M
Origin	China	HS Code	40092100
Production Capacity	1000000PCS/ Month
